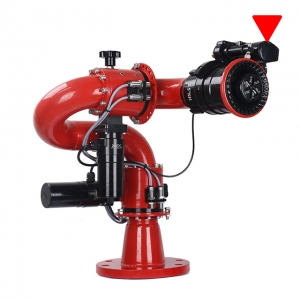

Remote Control Fire Fighting Water Cannon For Fire Vehicle

Product Origin:
China
Shipping Port:
Xiamen
Lead Time:
15-20days
Payment:
TT, Western Union
Size::
2.5 inch Nozzle
Material::
Stainless Steel 304 or 316L
Working Pressure::
0.8MPa
Type::
Fixed Fire Monitor

Inquiry

Details

Remote Control Fire Fighting Water Cannon For Fire Vehicle

The remote control water cannon was designed as compact and reliable device. Horizontal and vertical positioning is accomplished by remotely controlled electric motors, equipped with insulated handles to facilitate safe manual override. The Fog/Jet nozzle can be adjusted between full jet and spray modes by a separate electric motor.

Products Features

● SS304 stainless steel construction.

● Automatic Nozzle supply a stable flow at different flow rate.

● Available controlled both byJoystick at site and RC transmitter wireless.

● Waterproof control system with locking connectors.

● Rotation range 360°

● Elevation range +90°, - 55°

● Power supply 12V/24V DC(optional),or 100-230 V AC

Parameters:

Model	PSKD20-40
Flow Range	20-30-40LPS / 1200-1800-2400 LPM / 320GPM-630GPM, Selectable
Working Pressure	6 bar~ 8 bar
Max Reach @ Max Flow	60 meters
Range of motion	-90°~+90° Vert,360° Rotation
Max fog angle	120°
Turning speed	18 degrees/sec
Material (body)	304L Stainless Steel(Standard) 316L Stainless Steel (optional)
Material (Gear)	Hardcoated anodizing aluminum
Material (nozzle)	Hardcoated anodizing aluminum
Power supply	DC 24V(Standard) DC 12V(Optional) AC100-230V (Optional)
Power Consumption normal/Max	50W/150W
Weight incl. nozzle	appox 20kg
Cable Length Monitor- CPU	5m
Cable Length Joystick-CPU	5m standard/ other length available
Pump requirement for minimum performance	40L/S@ 6 bar
Pipe dimensions for installation	2-2.5 Inch
Monitor Inlet	3” or 4" flange
Monitor Outlet	2.5 inch NH
Water way size	2.5 inch
PACKAGE	● SS Monitor..............................1 set ● Monitor Nozzle.......................1 set ● Control Unit.............................1 pcs ● Joystick...................................1 pcs ● Cables......................................2 rolls (5m/roll) ● RC Transmitter........................1 pcs ● RC Receiver.............................1 pcs
