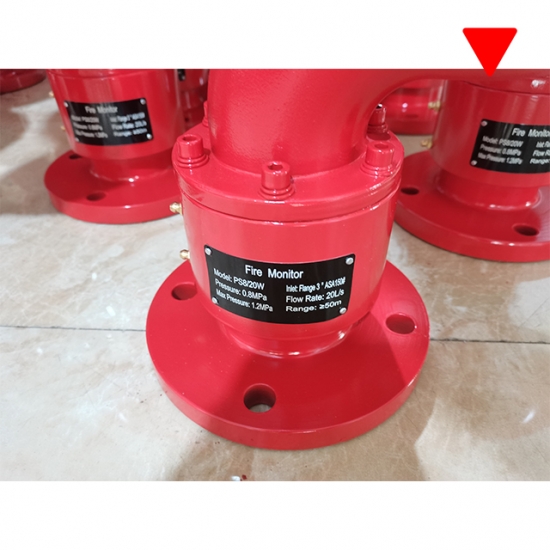

Aluminum Alloy Fixed Manual Fire Water Monitor
1.Product Introduction
Manual Fire Monitor has characteristics with adjustable flow rate, distant range, and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. Manual fire monitors can be installed in places of flammable or explosive chemical circumstances, airports, oil areas, oil transport wharves, shipyards, etc.
It is an efficient equipment for putting out fire, and it is can also be fixed on fire vehicles.
2.Product Parameter
|
Model
|
PS20
|
PS30
|
PS40
|
PS50
|
PS60
|
|
Flow Rate (Liter/Second)
|
20
|
30
|
40
|
50
|
60
|
|
Working Pressure(Mpa)
|
0.8
|
0.8
|
0.8
|
0.8
|
0.9
|
|
Max Working Pressure(Mpa)
|
1.0
|
1.0
|
1.0
|
1.0
|
1.2
|
|
Flange Connection(mm)
|
DN80
|
DN80
|
DN80
|
DN80
|
DN100
|
|
Water Jetting Range(m)
|
≥50
|
≥60
|
≥65
|
≥70
|
≥75
|
|
Horizontal Angle (Degree)
|
0-360
|
0-360
|
0-360
|
0-360
|
0-360
|
|
Max Angle Of Elevation (Degree)
|
85
|
85
|
85
|
85
|
85
|
|
Max Angle Of Depression (Degree)
|
-60
|
-60
|
-60
|
-60
|
-60
|
