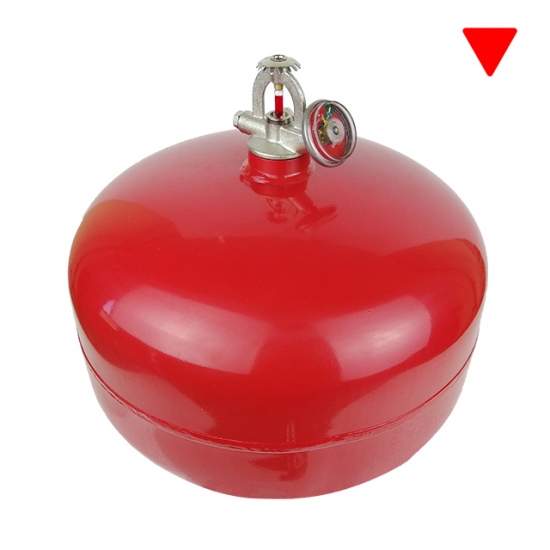

6kg automatic ceiling fire extinguisher
This extinguisher is made of a hand-held cylindrical pressure vessel comprising an agent that can be discharged to combat fire at any point of time. This type of extinguisher is best suited to control any kind of fire containing flammable gases or flammable liquid petroleum products. It also works rapidly and effectively against fire of plastics and electrical items. Apart from this, we provide this quality certified Automatic Fire Extinguisher in several capacities as per the requirements of patrons.
Features : Application Areas :
• Efficient performance • Commercial areas
• Robust construction • Large warehousing unit
• Quick results • Manufacturing mills
• Easy to use
| Specifications: | 4kg | 6kg | 8kg | 10kg | 12kg |
| Capacity(kg): | 4±0.05 | 6±0.06 | 8±0.06 | 10±0.08 | 12±0.08 |
| Out-diameter(mm): | 194 | 292 | 306 | 306 | 370 |
| Volume: | 5L | 7.6L | 10L | 12L | 15L |
| Effective discharging time (s): | 5 | 8 | 8 | 9 | 12 |
| Effective discharging range(m): | 3 | 3 | 3 | 3.5 | 3.5 |
| Operating Temperature(℃): | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 |
| Class rating: | 1A, 21B | 1A, 34B | 1A, 34B | 2A, 55B | 2A, 55B |
| Working pressure(MPa): | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| Test pressure(MPa): | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| G.W.(kg): | 7 | 9.5 | 12.5 | 15 | 18 |
Note:
1.The suspension point of the fire extinguishing device shall be chosen to be the most prone to fire in the protected area, or above the protected object, the height of which shall be more than one meter above the object to be protected, but not more than three meters.
2.Fire extinguishing device are pressure contained, should avoid collision while transport and storage. The device storage location should be dry and ventilated, preventing from frozen,damp and avoiding rain and burst.
3.When the user sets up the fire extinguishing device, it should be checked at intervals of one quarter. Once the pressure indicator is not in the green area or used, device should be sent for professional maintenance.
4. After re-filled or tested every 5 years,the fire extinguishing device shall be tested by the pressure of 2.1Mpa before continue to use.
