Variable Portable Inline Foam Eductor

Payment:
TT, Western Union
Size::
1.5-2.5 Inch
Material::
Anodized Aluminum
Type::
Foam Eductor

Inquiry

Details

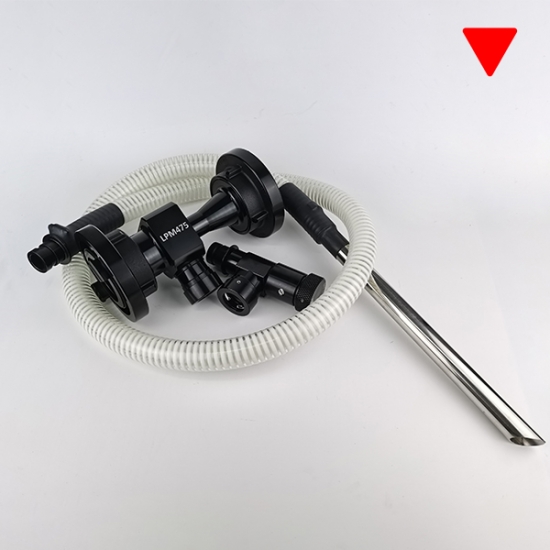

2.5 Inch Portable Inline Foam Eductor

1.Product Description

The foam eductors are designed to feed foam concentrates at a set mixing rate into the hose line. Inductors are placed in the delivery line between the pump and the foam nozzle and can be used for medium and heavy foam nozzles.

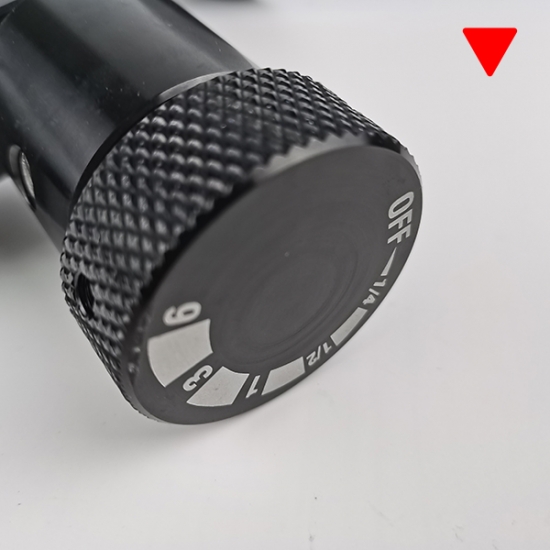

Eductors are available in 60, 95, or 125 gpm models and have a metering head with easy-read knob for use with Class A foam at 0.25% and 0.5% and with ARC-AFFF foam at 1%, 3% and 6% .

2. Product Parameter

Body Material	Anodized Aluminum
Foam Solution Ratio	0.25%,0.5%,1%,3%,6% ,adjustable
Coupling	Storz,John Morris,Gost,Machino,etc

Model Number	Flow Rate in GPM	Flow Rate in LPS	Connecting Size	Working Pressure
PHF/4	60 GPM	4 L/S	1.5 inch or 2.5 inch	4-10bar (58-145 PSI)
PHF/6	95GPM	6 L/S	1.5 inch or 2.5 inch	4-10bar (58-145 PSI)
PHF/8	125GPM	8 L/S	1.5 inch or 2.5 inch	4-10bar (58-145 PSI)
PHF/10	250GPM	10 L/S	1.5 inch or 2.5 inch	4-10bar (58-145 PSI)

3.Product Features

Mainly equipped with firefighting forces and professional firefighting teams to extinguish various fire scenes
Aluminum Alloy Construction is a new type of material, T5 Hear Treatment and Anodic Oxidation anticorrosion treatment which allows the longer service life.
Rotated 360 degree to avoid hose knotting
Easy to correct water hose position to prevent blocking water flow
