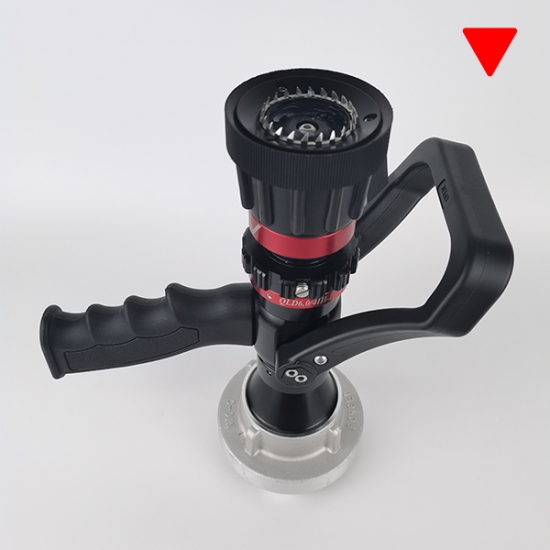

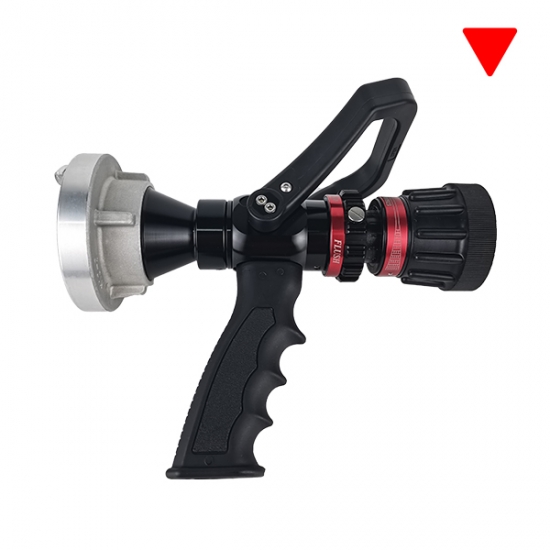

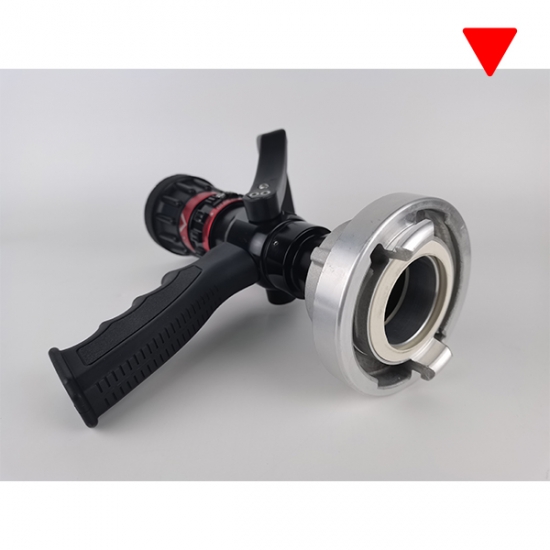

50 - 235 LPM Spray Jet Fire Hose Nozzle
Winner WFSN-235 gun type fire nozzle is a constant gallonage nozzle(flow remains the same in all patterns), with multiple flow settings for operator flow control.The WFSN-230 has four flow classes,50-100-150-235 LPM, and it is available both for straight stream,fog spray and flush without shutting down.
Main Features
1) Pattern Identification.
2) Anodized Aluminum labels,Laser Engraved.
3) Simple to operate (1/4 turn from straight stream to fog)
4) Raised lug marks straight stream for limited visibility operations
5) Easy to service and repair
Product Parameter
|
Model Number |
TN - C |
|
Weight |
1.4kg |
|
Fire nozzle body Material |
Anodized Aluminum |
|
Fire Nozzle Handler Material |
Horseshoe (Injection Molded Nylon black Handle) |
|
Fire Nozzle Bumper Material |
Rubber |
|
Swivel Inlet |
1.5" ( 40mm ) recommended |
|
Coupling |
Storz/NH/BSP/Russian type, etc. |
|
Valve Type |
Aluminum / SS |
|
Flow Control Method |
50-100-150-235 L/min |
|
Working Pressure |
6 Bar |
|
Max Reach @ Max Flow |
28 m |
|
Max fog angle |
130 degree |
|
Fire Nozzle Type |
Pistol Grip |
