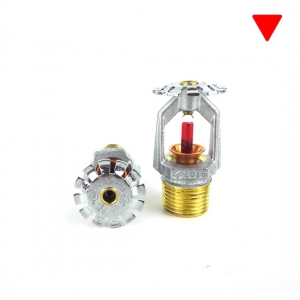

Pendent UL/FM fire sprinkler Advantages:
1.Cold and frost resistant due to the fusible alloy.
2.High pressure resistant and durable.
3.UL/FM approved quality
4.JOB bulb to ensure well response
Pendent UL/FM fire sprinkler Specifications
(1 ) Nominal caliber: 20mm, connection thread: R3 / 4 "or NPT3 / 4", water supply branch ≥ DN50.
( 2 ) Flow characteristic coefficient : K = 5.6
(3 ) Response time index (RTI) is 28 ±8m ·s ~ (-1) ~ (0.5).
(4 ) Maximum working pressure: 1.2 MPA.
(5 ) 100% Ex-factory pressure test: 3.45MPA
(6 )Nominal action temperature: 68 ℃.
Installation, Usage, and Maintenance:
During installation, should pay attention not to damage the bulb to avoid affect the thermal performance. In the process of wrench and twist, do not use spanner to wrench the supporting arm to deformation and affect the sealing performance (note: the bulb temperature can be chosen according to the needs of users)
Application:
It is usually installed in areas with fire danger, including warehouses, shopping malls, hotels, hospitals, theaters, office building, high-rise building, garages and etc.
Related product to 74 degree centigrade K14.2 ESFR fire sprinkler
Sample is available, please feel free to contact us or leave the message to us for sample, price or details specifications, catalog or test report.
For other fire sprinkler accessories, here is the way: fire sprinkler
