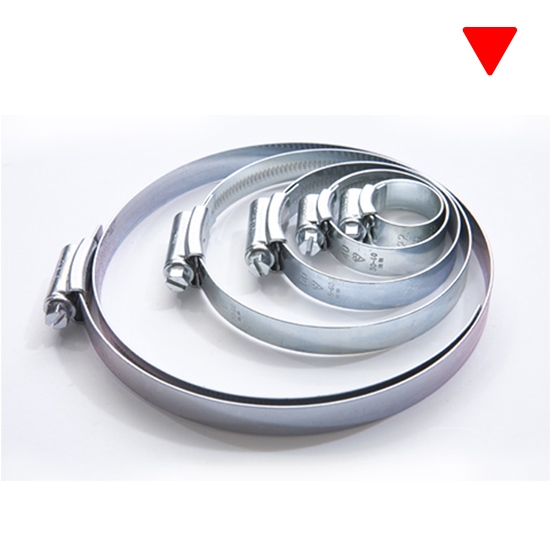

German Type Stainless Steel Worm Drive Hose Clamp
German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.
Dia: 6mm-300mm; Band width:8mm/10mm/12mm/12.7mm/14mm;
or according to client's requirement
1) Name:
Stainless Steel hose clamp
2) Material:
W1 /W2 /W4
4) Size:
5) MOQ:
500 Pcs
6) Packing:
First in plastics bag or box, then in carton
7) Payment term:
L/C, T/T, Paypal, Western Union,etc.
8) Delievery Time:
7-15 working days
9) Application
Pipe connection
*Note W1: Galvanized steel band; Galvanized steel housing ; Galvanized steel screw
W2: Stainless steel band; Galvanized steel housing ; Galvanized steel screw
W4: Stainless steel band; Stainless steel housing ; Stainless steel screw
Specification And Dimension
| SIZE | INCH | MM | WIDTH(mm) |
| 4 | 7/32"-5/8" | 6-16 | 6 |
| 6 | 7/16"-3/4" | 11-20 | 6 |
| 8 | 1/2"-7/8" | 13-23 | 6 |
| 9 | 1/2"-1" | 13-25 | 6 |
| 10 | 1/2"-11/16" | 14-27 | 6 |
| 12 | 1/2"-11/4" | 18-32 | 6 |
| 16 | 13/16"-2" | 21-38 | 8 |
| 20 | 13/16"-13/4" | 21-44 | 8 |
| 24 | 11/16"-11/16" | 27-51 | 8 |
| 28 | 15/16"-21/4" | 35-57 | 8 |
| 32 | 19/16"-21/2" | 40-63 | 10 |
| 36 | 113/16"-23/4" | 46-70 | 10 |
| 40 | 21/16"-3" | 52-76 | 10 |
| 44 | 2516"-31/4" | 59-82 | 10 |
| 48 | 29/16"-31/2" | 65-89 | 10 |
| 52 | 213/16"-33/4" | 72-95 | 10 |
| 56 | 31/16"-4" | 78-101 | 10 |
| 60 | 35/16"-41/4" | 84-108 | 10 |
| 64 | 39/16"-41/2" | 91-114 | 10 |
| 72 | 41/8"-5" | 105-127 | 10 |
| 80 | 45/8"-51/2" | 118-140 | 12 |
| 88 | 51/8"-6" | 130-152 | 12 |
| 96 | 55/8"-61/2" | 143-165 | 12 |
| 104 | 61/8"-7" | 155-178 | 12 |
Chemical Composition
| MATERIAL | NAME | ELEMANTS | |||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | ||
| 201 | 1Cr17Mn6Ni5N | <0.15 | 16.0-18.0 | 3.5-5.5 | 5.5-7.5 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 202 | 1Cr18Mn8Ni5N | <0.15 | 17.0-19.0 | 4.0-6.0 | 7.5-10.0 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 301 | 1Cr17Ni7 | <0.15 | 16.0-18.0 | 6.0-8.0 | <2.0 | <0.065 | <0.03 | - | <1.0 | - | - |
| 303 | Y1Cr17Ni7 | <0.15 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.20 | <0.03 | - | <1.0 | - | - |
| 304 | 0Cr18Ni9 | <0.07 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 304L | 00Cr19Ni10 | <0.03 | 18.0-20.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 309S | 0Cr23Ni13 | <0.08 | 22.0-24.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 310S | 0Cr20Ni20 | <0.08 | 24.0-26.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 316 | 0Cr17Ni12Mo2 | <0.08 | 16.0-18.5 | 10.0-14.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 316Ti | 0Cr18Ni12Mo2Ti | <0.08 | 16.0-19.0 | 11.0-14.0 | <2.0 | <0.035 | <0.03 | 1.8-2.5 | <1.0 | - | - |
| 316L | 00Cr17Ni14Mo2 | <0.03 | 16.0-18.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 317L | 00Cr19Ni13Mo3 | <0.08 | 18.0-22.0 | 11.0-15.0 | <2.0 | <0.035 | <0.03 | 3.0-4.0 | <1.0 | - | - |
Please feel free to send us an inquiry.
