Fire Fighting Pump Suction Filter Strainer

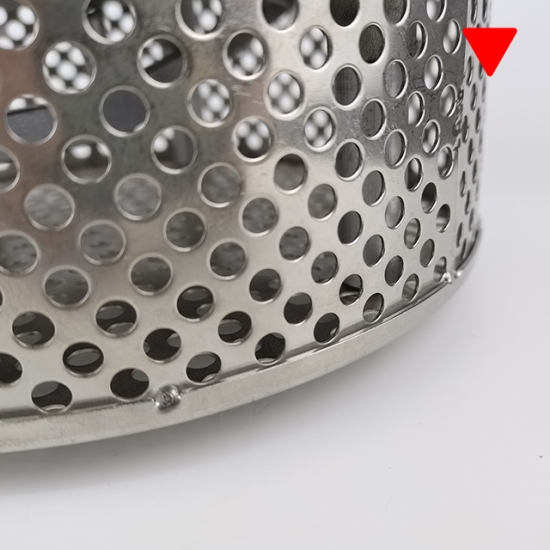

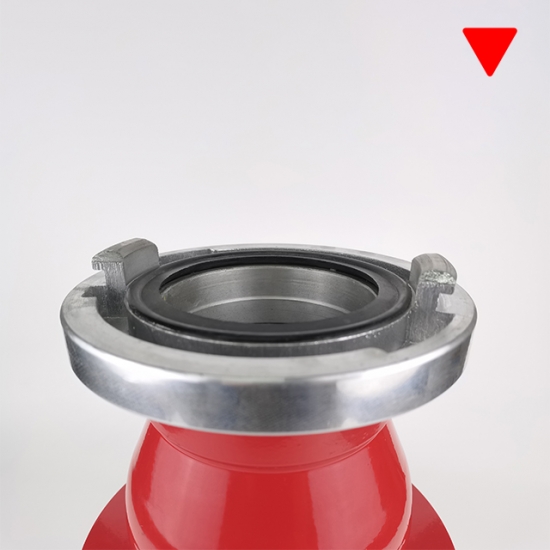

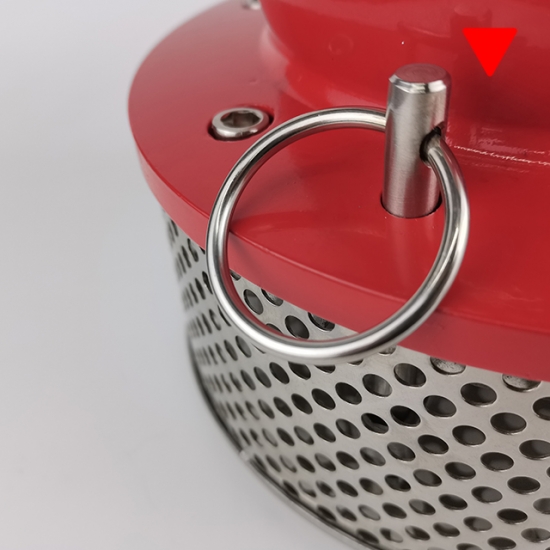

The suction strainer is made of aluminum alloy with the strainer grid is made of stainless steel. It is an initial element of suction line. The strainer grid is a cylinder shape and has several perforated openings on the side and bottom of the strainer to prevent direct suction of coarse dirt particles from the bottom of the water source into the pump. It is equipped with the non-return valve and the lug for fasten a float.
Specifications of Fire Hose Suction Strainer
| Item | Nominal Size | Outlet | Size (H × W × D) (mm) | Weight (kg) | Remarks |
|---|---|---|---|---|---|
| 3" | DN80 | 75/B | 208 × 184 × 184 | 2.30 | DIN 14362 |
| 4" | DN100 | 110/A | 252 × 233 × 233 | 4.80 | PN-86/M-51152 |
| 5" | DN125 | 125 | 310 × 282 × 282 | 7.80 | |
| 6" | DN150 | G6A | 370 × 316 × 316 | 10.50 |
|
For detail information please directly contact us.
